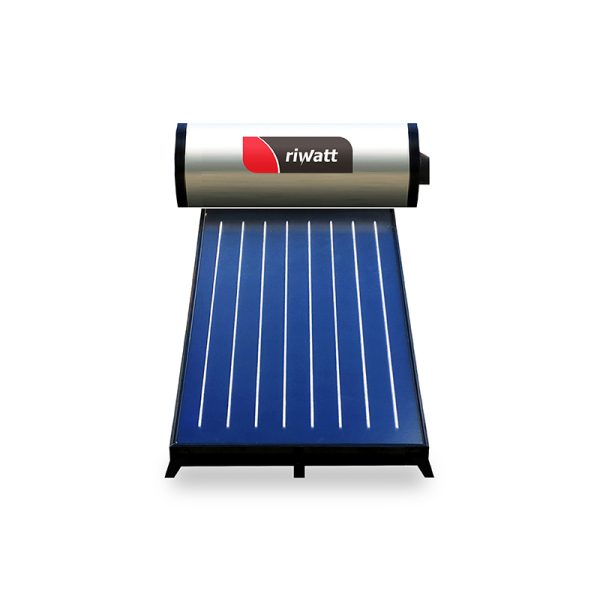

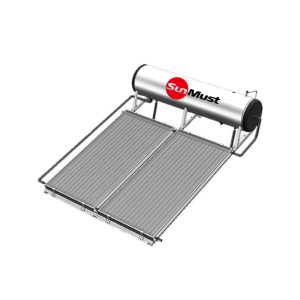

Flat plate solar water heater working principle: Flat panel solar water heater is such a kind of thermosiphon solar water heating device, which flat plate collector placed below high pressure hot water tank. The tank and flat plate are connected with two circulation pipes to form a open-loop solar water heating system,The whole system only use water, can’t use other liquid as circulation medium. By continuously circulating in this way, the water is heated directly inside flat collector and rise to be stored inside hot water tank.
| Flat Panel Solar Water Heater | |||||
| MODEL | Flat Panel Solar Collector | Capacity | Absorber Area | Suitable for | |
| Pcs | Size(mm) | (L) | (M2) | (Persons) | |
| 【150L】 | 1 | 2000*1250*80MM | 150 | 2.5 | 4~5 |
| 【200L】 | 2 | 2000*1000*80MM | 200 | 4 | 6~7 |
| 【300L】 | 2 | 2000*1250*80MM | 300 | 5 | 9~10 |
Riwatt flat plate thermosyphon integrating system is composed of solar flat plate collector,
water storage tank, bracket, circulation pipe and accessories. Due to thermosyphon
principle,the collector absorbs solar energy to heat the water inside,while the thermosyphon
circulation inside enables the heated water to flow into and be stored in the water tank.
| Flat Panel Solar Water Heater (High Pressure) | |||
| MODEL NO. | NESOL-150L | NESOL-200L | NESOL-300L |
| Water Tank | |||
| Capacity of Tank | 150L | 200L | 300L |
| Water Tank Type | 【HIGH PRESSURE WATER TANK】 | ||
| Water Tank Dia. | Ф470/360mm | Ф470/360mm | Ф470/360mm |
| Material of Outer Tank | Color Steel/Stainless Steel | Color Steel/Stainless Steel | Color Steel/Stainless Steel |
| Material of Inner Tank | Stainless Steel SUS304 or 316L | Stainless Steel SUS304 or 316L | Stainless Steel SUS304 or 316L |
| Thermal Insulation | Polyurethane*55mm | Polyurethane*55mm | Polyurethane*55mm |
| Joint of Water Tank | 3/4’’ | ||
| Circulation Pipe Joint | 3/4’’ | ||
| Max.Working Pressure | 0.05Mpa | ||
| Flat Panel Collector | |||
| Solar Collector Model | SUNBLUE-2.5 | SUNBLUE-2.0 | SUNBLUE-2.5 |
| Collector Dimension(L*W*T) | 2000*1250*80mm | 2000*1000*80mm *2pcs | 2000*1250*80mm*2pcs |
| ‘Gross Area | 2.50 m2 | 2 * 2.00 m2 | 2 * 2.50 m2 |
| Absorber Area | 2.27 m2 | 2 * 1.82 m2 | 2 * 2.27 m2 |
| Cover Material | 3.2mm Low Iron Tempered Glass;Transmittance ≧91% | ||
| Coating | Blue TEC / Black Chrome /Black Anode | ||
| Insulation Material | High Density Rock Wool | ||
| Absorptivity | ≥95%±2%,Emittance | ||
| Emissivity | 5% ±2% | ||
| Max.Working Pressure | 0.7Mpa | ||
| Material of Frame | Aluminum Alloy, δ1.3mm, Multiple Color | ||
| Material of Back Plate | Galvanized Steel/Al.Sheet. | ||
| Bracket (NCLINED ROOF OR FLAT ROOF MOUNTED) | |||
| Material | Galvanized Steel/Al.alloy/Stainless Steel (Optional) | ||
| Container Load(40’HQ) | 93 SETS | 68 SETS | 50 SETS |
| REMARKS: | |||
| Warranty: | 5(FIVE)years | Payment Terms: | TT OR L/C (NEGOTIABLE) |
| Lading time: | 13 working Days | Other Terms | FREE OEM |
| Flat Panel Solar Water Heater Accessories | ||
| Serial No. | Description | QTY. (Pcs) |
| ❶ | PT VALVE (90℃ Degree Model) 3/4’’ | 1 |
| ❷ | Non Return & Pressure Relief Valve 3/4’’ | 1 |
| ❸ | Magnesium anode 3/4’’ | 1 |
| ❹ | Stainless Steel Flexible Pipe 1 Pair. | 1 |
| ❺ | 22mm transfer to 3/4’’ Stopper | 2 |
| ❻ | Controller panel,220V/50HZ | 1 |
| ❼ | electric heater element. 1’’, 1500W | 1 |
| ❽ | Thermostatic mixing valve – 3/4’’ | 1 |
