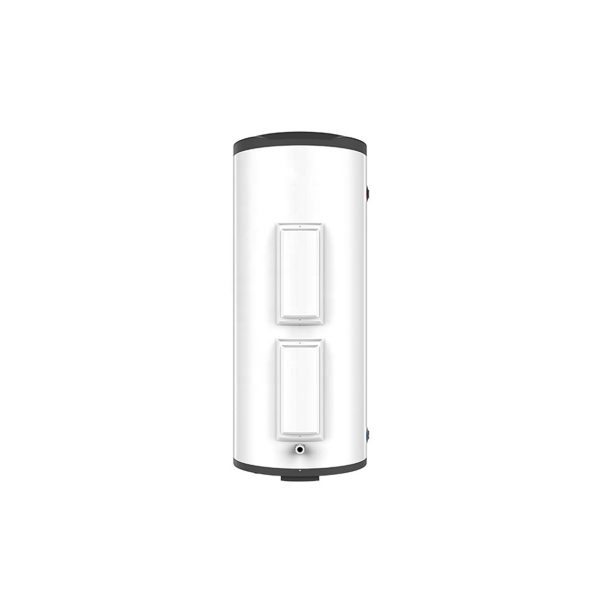

Solar water tank working principle: The solar water tank is simply like a battery for electricity, except it stores heat energy in the form of hot water. Normally a tank is used to store the heat energy in hot water.Riwatt Solar offers a wide range of solar water tanks for types of applications. These solar water storage tanks are available for hot water storage, hot water heating systems, commercial, and industrial applications.
| MODEL | Inner Tank | Insulation Layer | Outer Tank | Coil Length | Tank Height | ||||||
| Inner Dia.
(mm) |
Thickness
(mm) |
Thickness
(mm) |
Out Dia.
(mm) |
Thickness (mm) | Single Coil (m) | Dual Coil (m) | mm | ||||
| Lower | Upper | ||||||||||
| GTR-100L | 360 | 1.0 | 55 | 470 | 0.5 | 20 | – | – | 1060 | ||
| GTR-150L | 360 | 1.2 | 55 | 470 | 0.5 | 20 | 15 | 10 | 1450 | ||
| GTR-200L | 450 | 1.5 | 50 | 550 | 0.5 | 20 | 15 | 10 | 1340 | ||
| GTR-300L | 480 | 1.5 | 50 | 580 | 0.5 | 25 | 18 | 12 | 1700 | ||
| GTR-400L | 580 | 2.0 | 60 | 700 | 0.5 | 30 | 20 | 15 | 1560 | ||
| GTR-500L | 580 | 2.0 | 60 | 700 | 0.5 | 35 | 25 | 15 | 1890 | ||
| GTR-600L | 580 | 2.0 | 60 | 700 | 0.5 | 35 | 25 | 15 | 2176 | ||
| GTR-700L | 580 | 2.0 | 60 | 700 | 0.5 | 40 | 28 | 17 | 2476 | ||
| GTR-800L | 800 | 2.5 | 100 | 1000 | 0.5 | 45 | 30 | 20 | 1860 | ||
| GTR-1000L | 800 | 2.5 | 100 | 1000 | 0.5 | 50 | 35 | 25 | 2100 | ||
| GTR-1000L WATER TANK SPECIFIATION | |||||||||||
| Insulation Layer | High-Density Polyurethane Foamed | ||||||||||
| Inner Tank Material | Food Grade SUS 304-2B | ||||||||||
| Outer Tank Material | High Quality Color Painted Steel | ||||||||||
| In Tank Heat Exchanger | Stainless Steel or Copper (size: Ȼ:12,16,19,25mm) | ||||||||||
| Drain Port | 1″ Female NPT (Bottom of Tank) | ||||||||||
| T/P Port (Exhaust Port) | 3/4″ female | ||||||||||
| Accessories | Electric Heater Element(1’’, 1.25’’, 1.5’’ or customized)︱ Magnesium Anode(20*230mm)︱T/P Valve(3/4’’)︱Check Valve(3/4’’)︱Tank Feet | ||||||||||
|
Packing Size (mm) |
GTR-100L | 1130×560×560 | GTR-500L | 1980×780×780 | |||||||
| GTR-150L | 1520×560×560 | GTR-600L | 2280×780×780 | ||||||||
| GTR-200L | 1480×640×640 | GTR-700L | 2580×780×780 | ||||||||
| GTR-300L | 1800×680×680 | GTR-800L | 2000×1100×1100 | ||||||||
| GTR-400L | 1700×780×780 | GTR-1000L | 2300×1100×1100 | ||||||||
1. SS Tanks: All the tanks made in our factory are of SS 304/ 316 material
2.Outer tank: Galvanized steel/PVDF/STAINLESS STEEL.
3.Water tank diameter: can customized
4.Insulation layer: PU foam, 42Kg/m³ high density.
5.Tank capacity: 50L-1000L.
6.Insulation layer thickness: 50mm or 100mm or customized
7.Water tank connection size: 3/4” or 1” or 1.25” or 1.5” or customzed
8.Working pressure: 6 Bar.
9.Water tank optional accessories: electric heating element (backing up heating source) & water level & temperature sensor
10.Heat exchanger(coil) quanity from 1 to 4unit are all available.
11.Auxiliary energy: Electric heater(Optional).
12.Suit for solar water heating system.
13.Bigger size magnesium rod, longer service life.
14.OEM/ODM service available
Mainly used for central supply of domestic hot water and hot water supply for commercial buildings.
Depending on different capacities of the water tank, includes 9 common used models, 150L,200L,250L,300L,400L,500L,600L,800L and 1000L for different water requests.
This kind of big project water tank mainly composed with solar collectors, workstations (controllers and circulation pumps), expansion tanks, filling valves, exhaust valves, collector connections and pipeline.
